7 Inch Raspberry Pi 4 Model B Touch Screen 1024×600 IPS Capacitive LCD with Speaker for Raspberry Pi 3B+/3B/Nvidia Jetson Nano
Feature:
1. Resolution: 1024*600

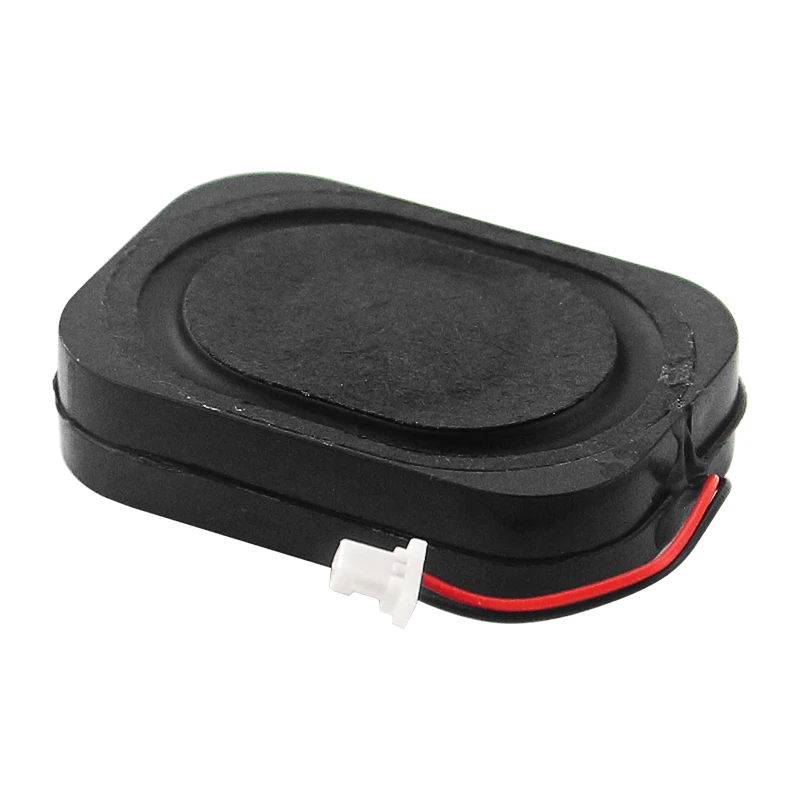

2. USB interface capacitive touch , more convenient;with speaker.
3. Support the backlight control, saves the electricity
4. With 3.5mm audio interface and fixed feet
5. It can support five-finger touch to computer. Single touch support for Raspberry Pi
6. HDMI-compatible interface is used to display and USB interface is used to touch

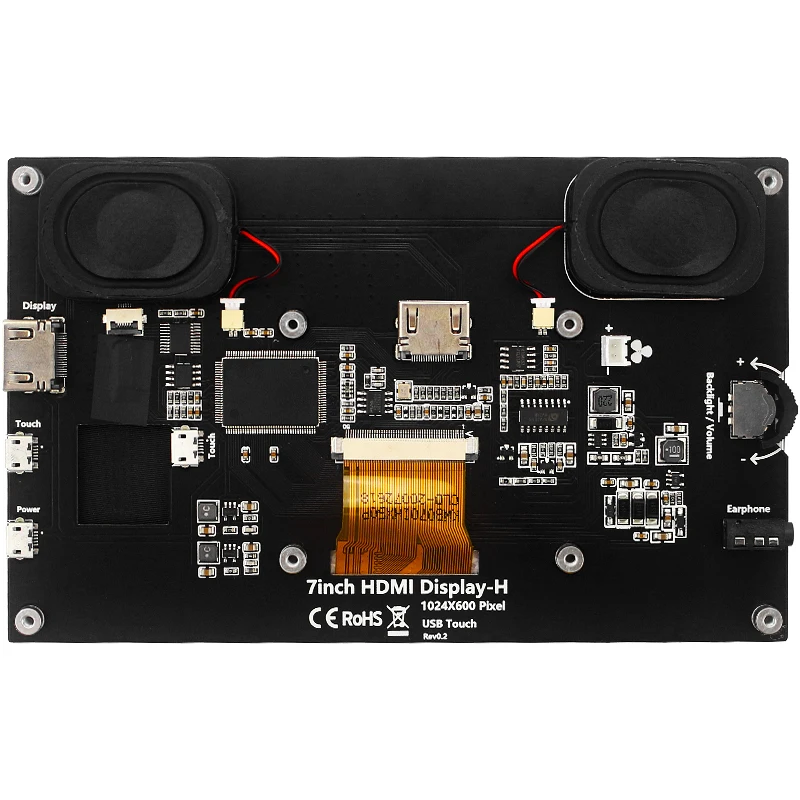

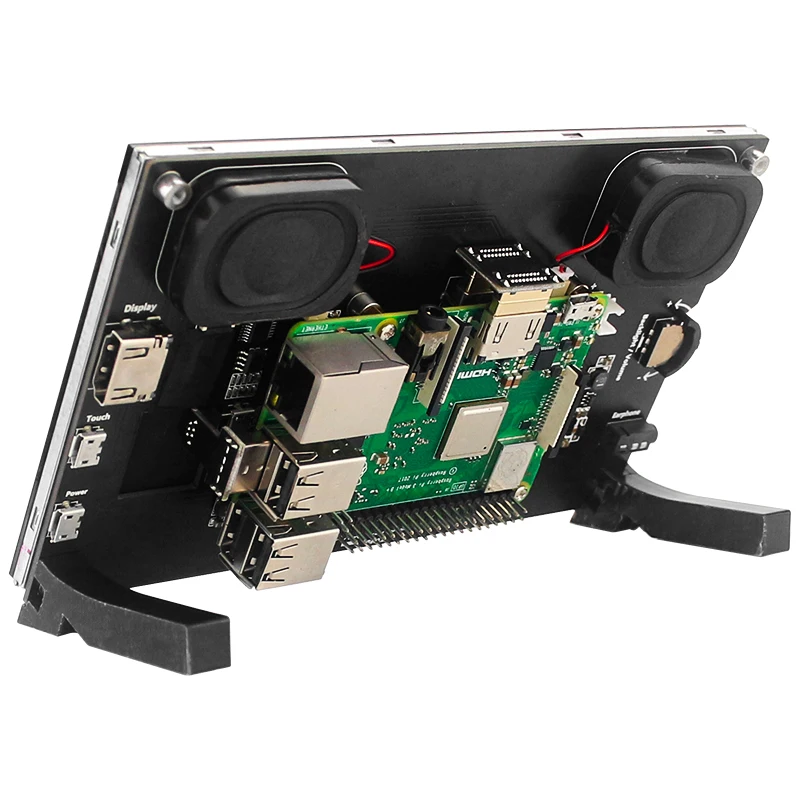

7. This screen can directly fix the Raspberry Pi motherboard on the back.
8. The 7 inch touch screen compatible with Raspberry Pi 4B / 3B+ / 3B, Jetson Nano and PC
Specification:
Size: 7 inch
Resolution: 1024*600 (dots)
Touch: five-point capacitive touch for computer;one-point for Raspberry Pi
Compatible With: Raspberry Pi 4B / 3B+ / 3B, Jetson Nano and PC .
How to use for Raspberry Pi:
With Speaker
Step 1.
Download and install the Raspberry Pi OS/Ubuntu/Kail Kail/Retropie official system
Step 2.
Open the “config.txt” file in the root directory of SD card on the computer, Add the following at the end of the file, save and exit.(Don’t input the “-compatible” )
hdmi-compatible_force_edid_audio=1
max_usb_current=1
hdmi-compatible_force_hotplug=1
config_hdmi-compatible_boost=7
hdmi-compatible_group=2
hdmi-compatible_mode=87
hdmi-compatible_drive=2
display_rotate=0
hdmi-compatible_cvt 1024 600 60 6 0 0 0
Step 3.
Run Raspberry Pi :

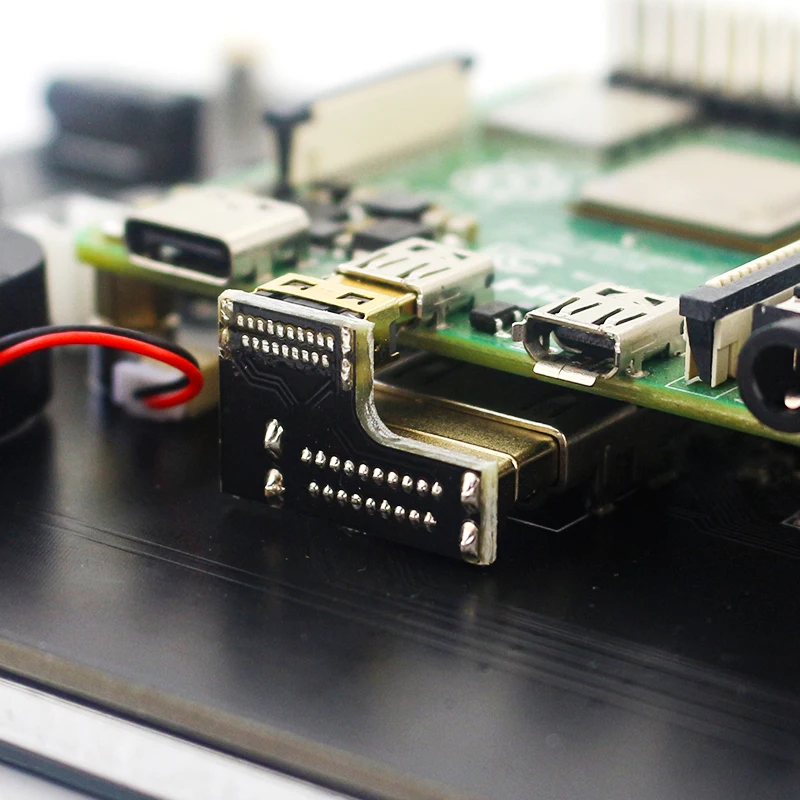

Insert it into the SD card slot on the back of the raspberry pi and connect the HDMI-compatible interface and touch interface of the display screen to raspberry pie, connect the power supply of raspberry pi,
and start the Raspberry Pi to display and touch normally..
How to use for PC
This LCD can be used as the HDMI-compatible touch monitor of Windows computer, only need to connect HDMI-compatible interface and TOUCH interface, can normally display and support up to five points touch
Without Speaker
Step 1. Download and install the Official Raspberry Pi OS/Ubuntu Mate/Kail/Retropie to micro SD card
Step 2. Modify the “config.txt” configuration file
Open the “config.txt” file in the root directory of SD card on the computer, Add the following at the end of the file, save and exit.
hdmi-compatible_force_edid_audio=1
max_usb_current=1
hdmi-compatible_force_hotplug=1
config_hdmi-compatible_boost=7
hdmi-compatible_group=2
hdmi-compatible_mode=87
hdmi-compatible_drive=2
display_rotate=0
hdmi-compatible_cvt 1024 600 60 6 0 0 0
Step 3. Insert SD card
After the above steps are completed, pop up the SD card on the computer and insert it into the SD card slot on the back of the raspberry pi.
Step 4. Running system
Connect the HDMI-compatible interface and touch interface of the display screen to raspberry pi, connect the power supply of raspberry pi,
and start the machine to display and touch normally..
If you have any question,please refer to this link:
//www.lcdwiki.com/7inch_HDMI_Display_(H)#Product_Description

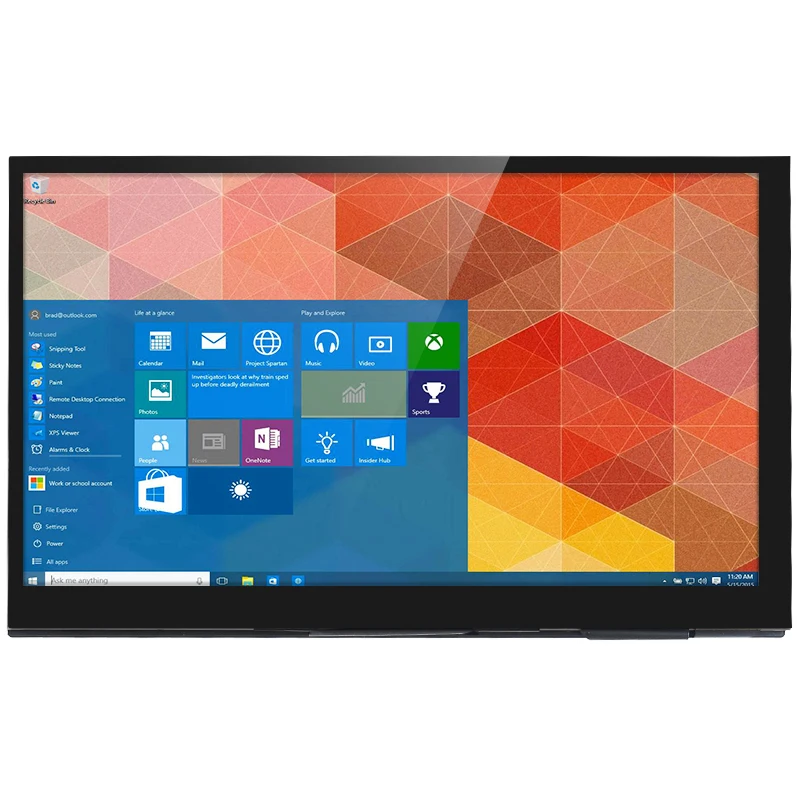

Work as HDMI-compatible touch monitor
This product can be used as the HDMI-compatible touch monitor of Windows computer, only need to connect HDMI-compatible interface and TOUCH interface, can normally display and support up to five points touch.
1 x 7 inch HDMI-compatible LCD Display with Speaker(1024*600)
(Raspberry Pi is not included!)
or1 x 7 inch HDMI-compatible LCD Display without Speaker(1024*600)
(Raspberry Pi is not included!)
